Why Manufacturing Drawings Are More Than Dimensions

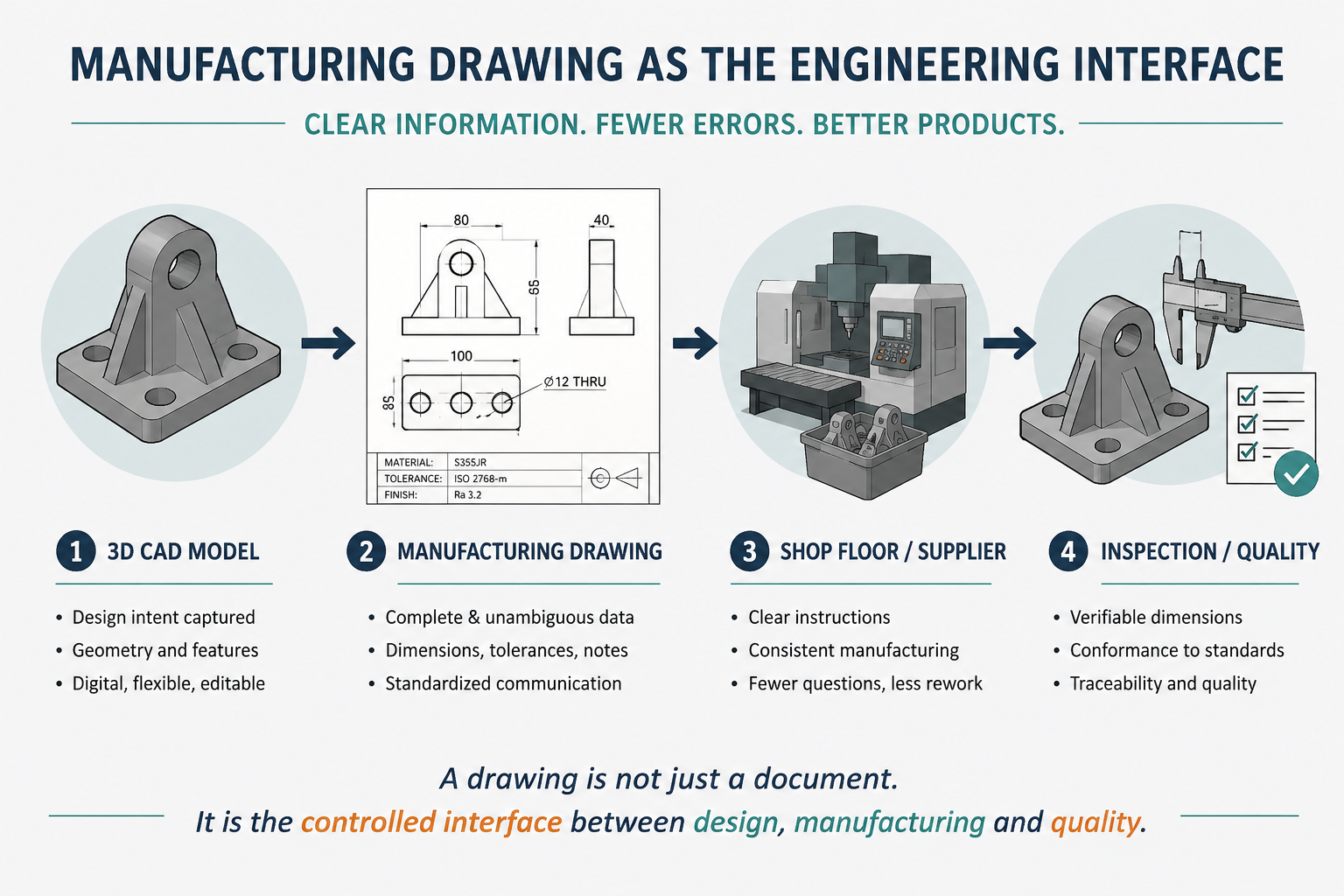

A manufacturing drawing is not just a dimensioned view of a CAD model.

It is a communication tool between design, manufacturing, inspection, and assembly.

A weak drawing can create problems even when the 3D model is correct.

Typical drawing problems include:

• missing critical dimensions
• unclear datum structure
• unnecessary tight tolerances
• missing surface finish information
• unclear material specification
• missing revision information
• poor view selection
• dimensions that are difficult to inspect

The result is usually not one big failure.

It is friction:

• more questions from manufacturing
• slower quotation
• higher machining risk
• inspection uncertainty
• rework
• delayed assembly
• higher cost

A useful manufacturing drawing should make the intended part clear.

It should answer practical questions:

• what is critical?
• what can be standard?
• what tolerance is actually needed?
• how will the part be inspected?
• what material and finish are required?
• what information does the supplier need to avoid guessing?

Good drawings reduce ambiguity.

And in manufacturing, ambiguity usually becomes cost.
